SPECIFICATIONS

AI Functions: Motion Detection

Brand Name: AZISHN

Certification: CE

Color: WHITE

Color Night Vision: No

Connectivity: Closed System/CCTV Wired

Dimensions (L x W x D)(mm): 103*85mm

Feature: AHD(Analog High Definition)

High Definition: 5.0 Megapixels

High-concerned chemical: None

IP Rating: IP66

IR Distance(m): 5-20M,20meter

IR-CUT: Auto Switch

Installation: Ceiling

Lens (mm): 1.7mm

Lens Quantity: Single Lens

Megapixels: 5 MP

Minimum Illumination(Lux): 0.01

Origin: Mainland China

Power Consumption(W): 3W

Power Supply: Normal

Power Supply(V): DC 12V

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: SmartSens

Shell Material: Metal

Style: Dome Camera

Supported Operating Systems: No

Video Compression Format: H.264,H.265

Viewing Angle (Degree): 80-90degree

Zoom: None

Zoom type: None

AHD features:

The technology uses a progressive scan while forming a signal and division of brightness and color components of an analog signal: that allows eliminating a blur and blinking, improving a color reproduction.

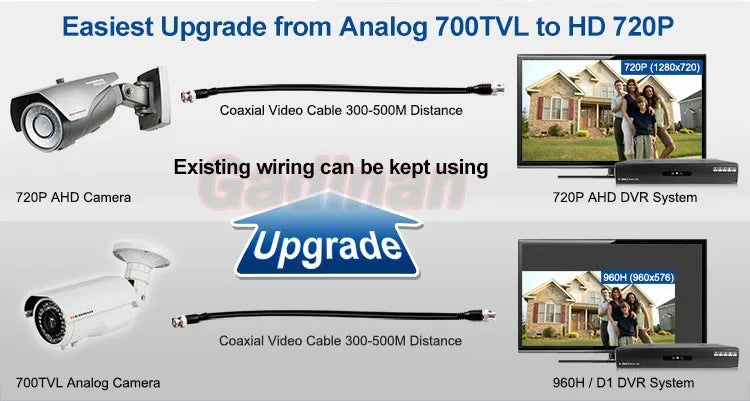

Reliable and inexpensive connection

AHD data transmission technology doesn’t lay a big claim on a coax cable quality. That’s why any available cable can be used for data transmission, including a composite one.

Long distance of a network laying without quality losses

Video data is transmitted without quality losses at the distance of 500 m.

Qualitative video without latencies

No signal latencies, indicative for IP-systems.

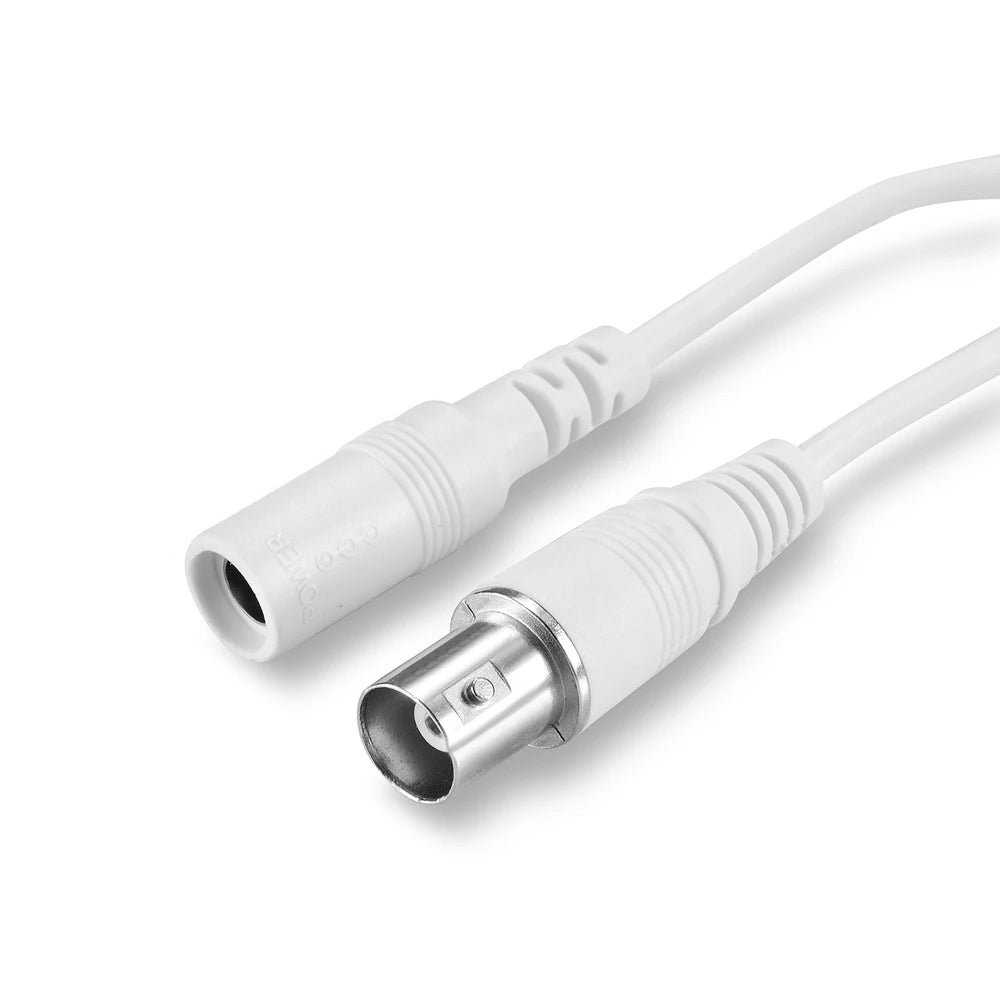

1.Power adapter or BNC cable is not included,please buy it from below link

2.Make sure you have a AHD DVR for the AHD cameras .or you will can't view or record video.

Here is a professional AHD NVR for your reference. It is very very very important !!! Pls don't buy it if you don't have AHD DVR !!!

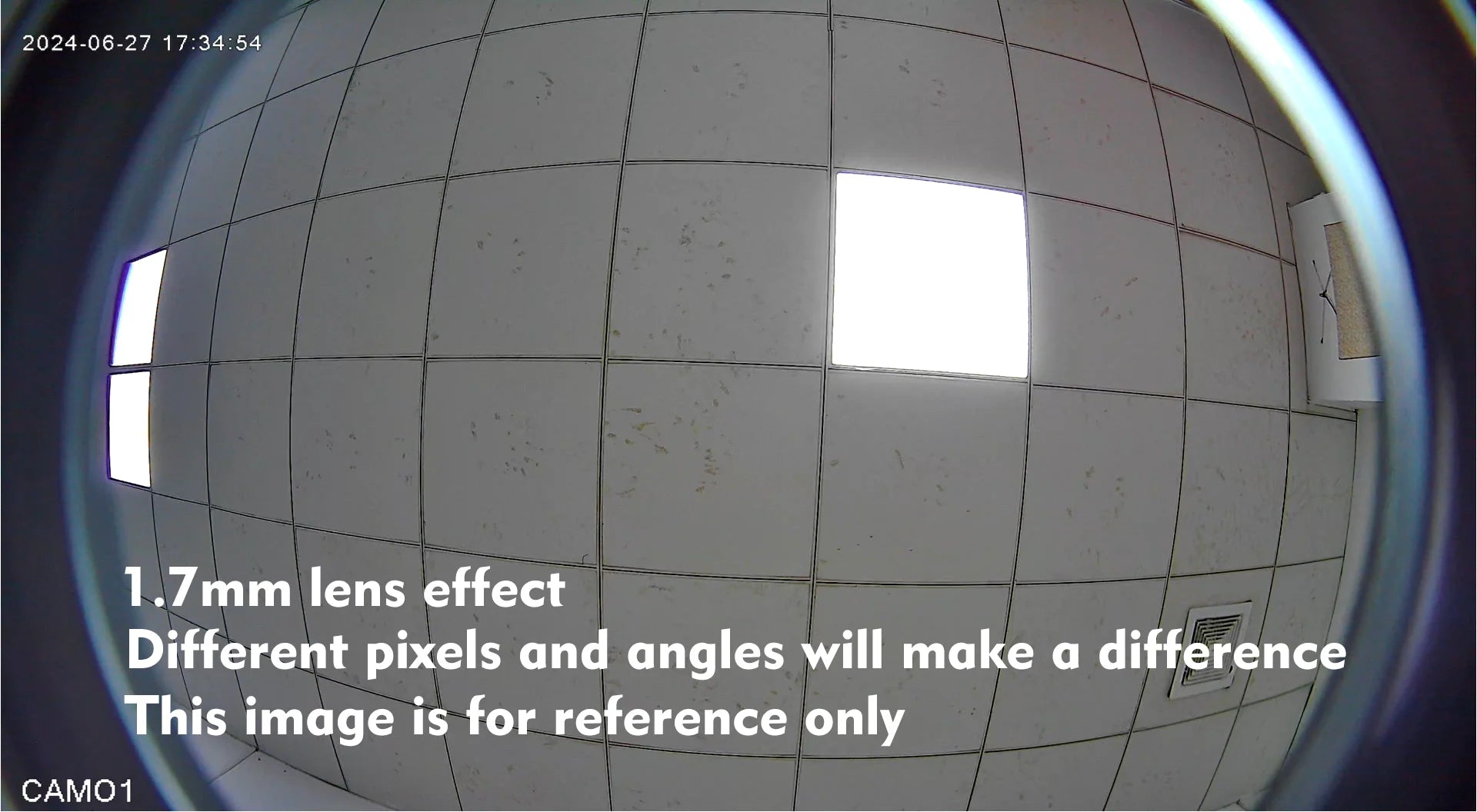

1.7mm lens effect

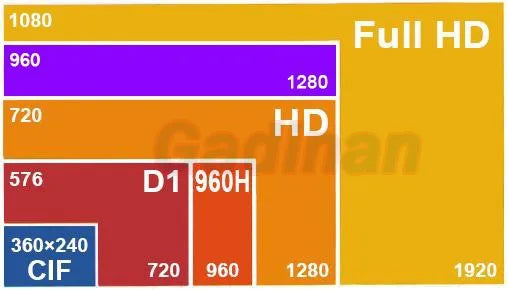

Different pixels and angles will make a difference

This image is for reference only

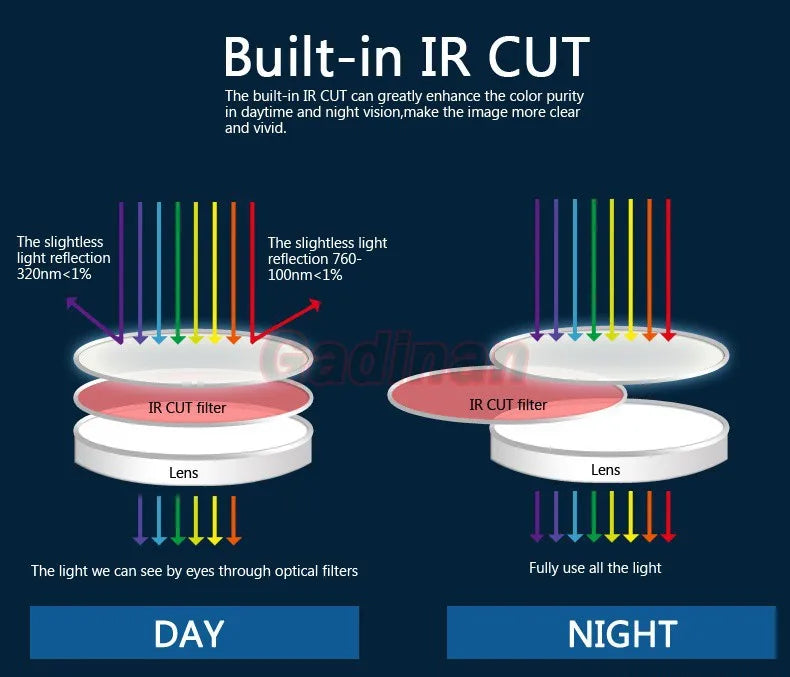

High Quality Night Vision Smart Infrared Cut Filter (ICR)

Camera has a very good night image quality. Infrared Cut Filter to ensure the highest quality images - day and night.

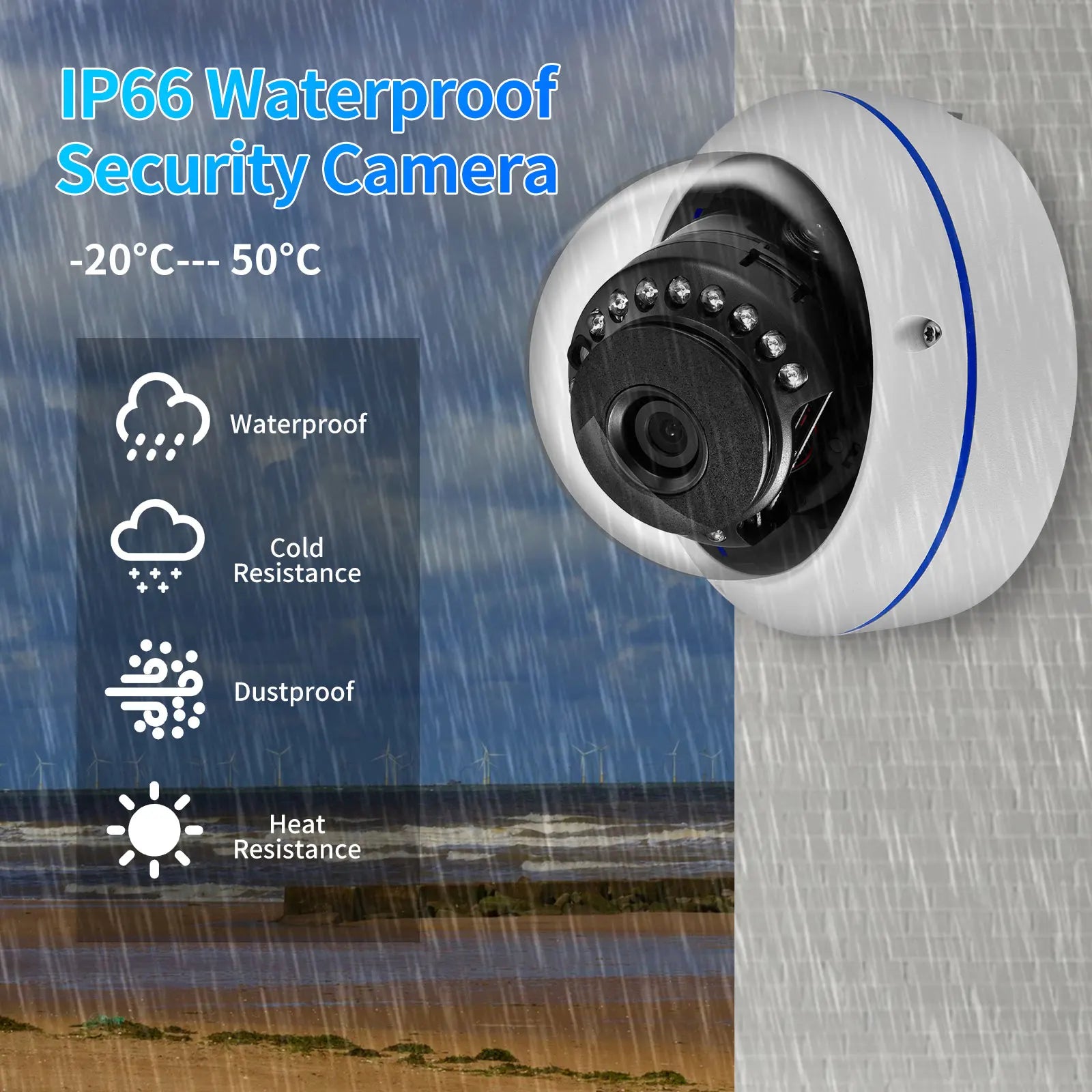

IP66 Waterproof Security Camera

Camera can suit for both outdoor and indoor usage.

Suitable for a variety of places

Locate incident Video with Smart Playback

You can freely playback to any specific moment on the timetable of your recordings and enjoy it on a beautiful intuitive interface

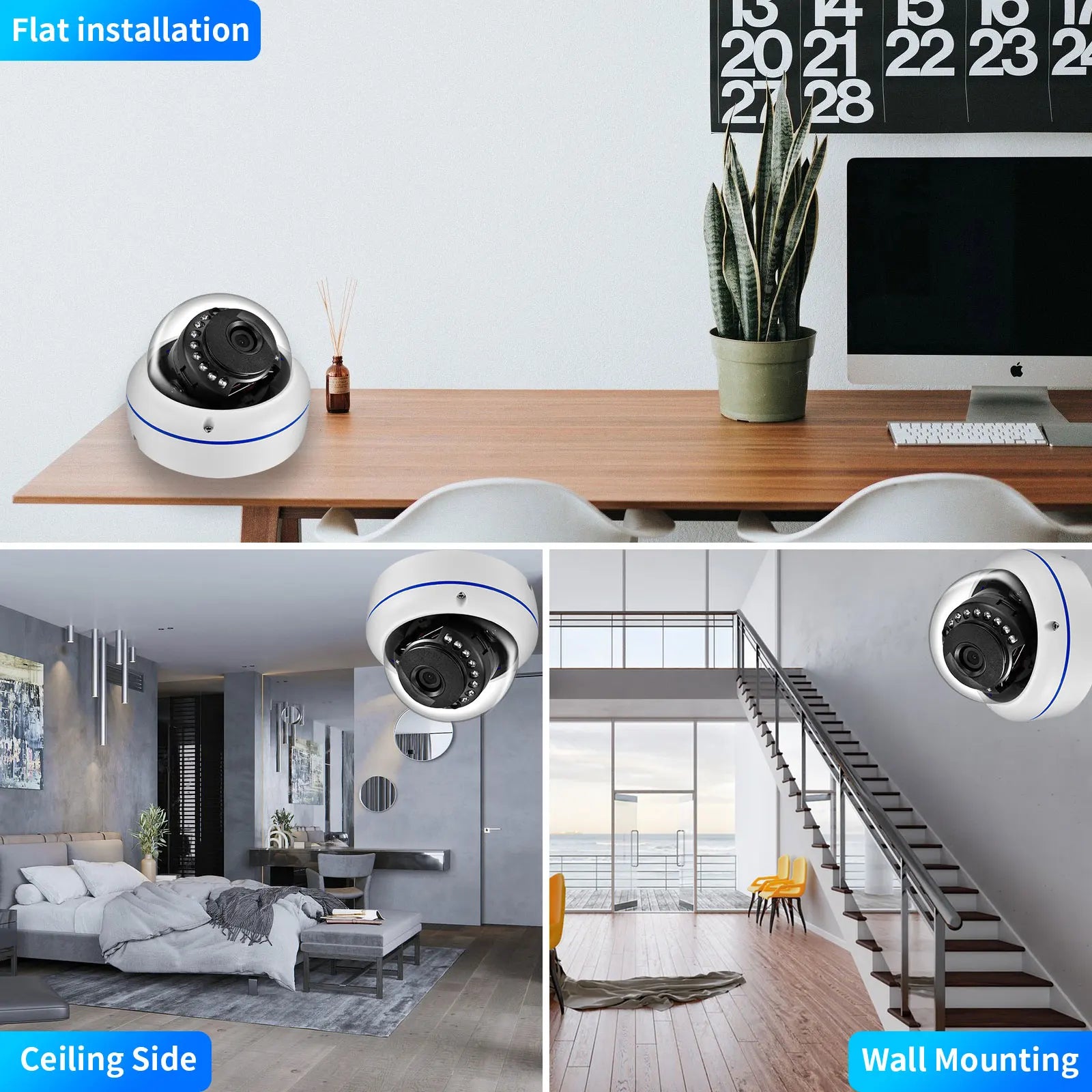

Ceiling
and Side

Warm Tips:

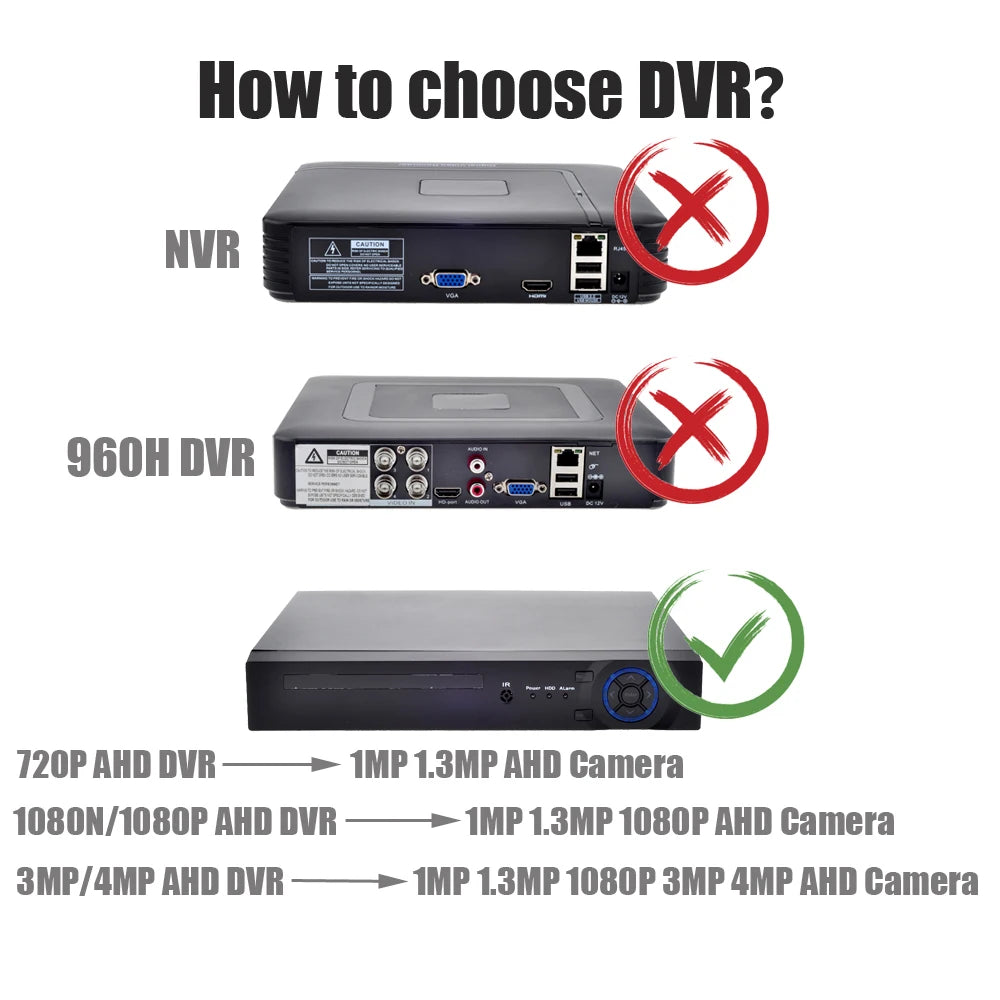

1:This camera is AHD camera, need to connect with AHD DVR,720P and 1080P need to connect with at least 1080N AHD DVR, 5MP need to connect with at least 5M-N.

2:Can't connect with 960H analog dvr or TV monitor directly.

Description

1. AHD 1080P,5MP (have to connect to AHD DVR)

2. 1.7mm 150 degree super wide angle

3. Color CMOS Sensor,  ICR

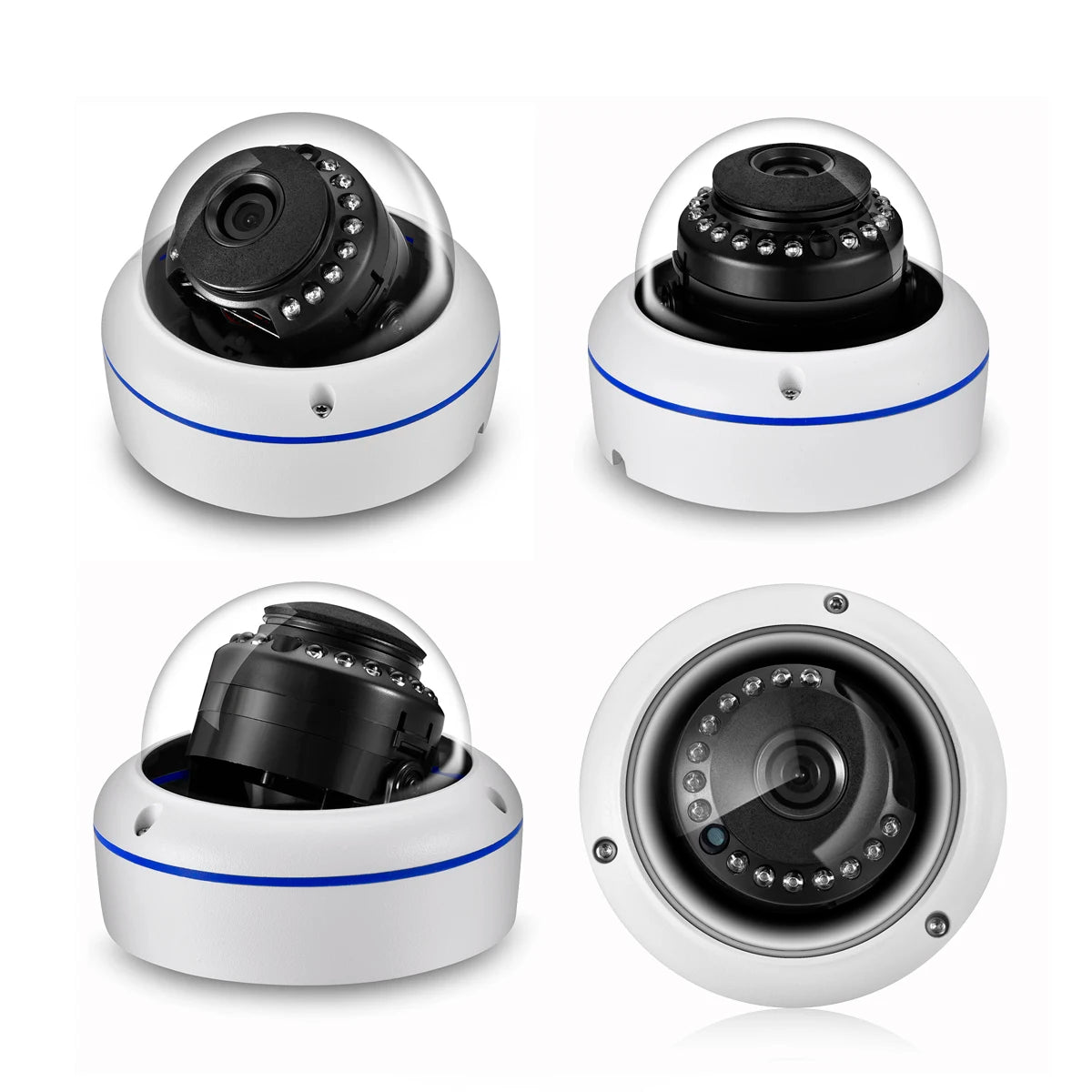

4. Metal housing,dome camera outdoor indoor use

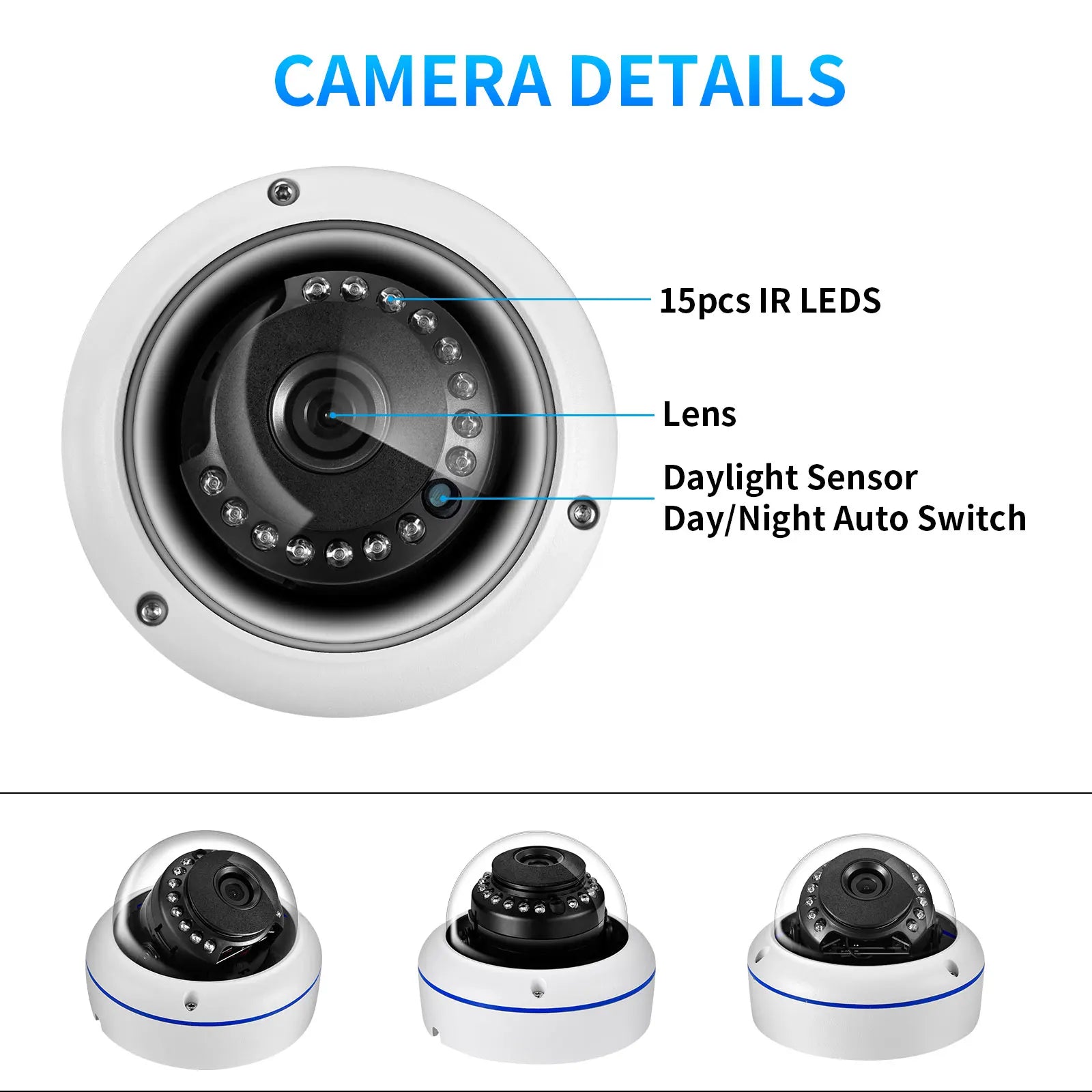

5. 15pcs IR leds light , 5-25M Max IR distance

Model	AHD 1080P,5MP
Sensor	CMOS sensor
Minimum Illumination	Color:0.01Lux,(F1.2,AGC ON),0Lux with IR
	Black & White:0.001Lux,(F1.2,AGC ON),0Lux with IR
Photosensitive Resistance	1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage
Shutter	1/50(1/60) seconds to 1/10,000 seconds
Day and Night Function	Support IR-CUT
Infrared light	15pcs IR Leds
Lens	1.7mm 150 degree super wide angle
Synchronous Mode	inter-sync
Noise-signal Ratio	>58dB
Temperature and Humidity	- 10’C ~ 60’C, humidity is less than 90% (no condensation)
Power	DC12V±10%
Consumption	<5W

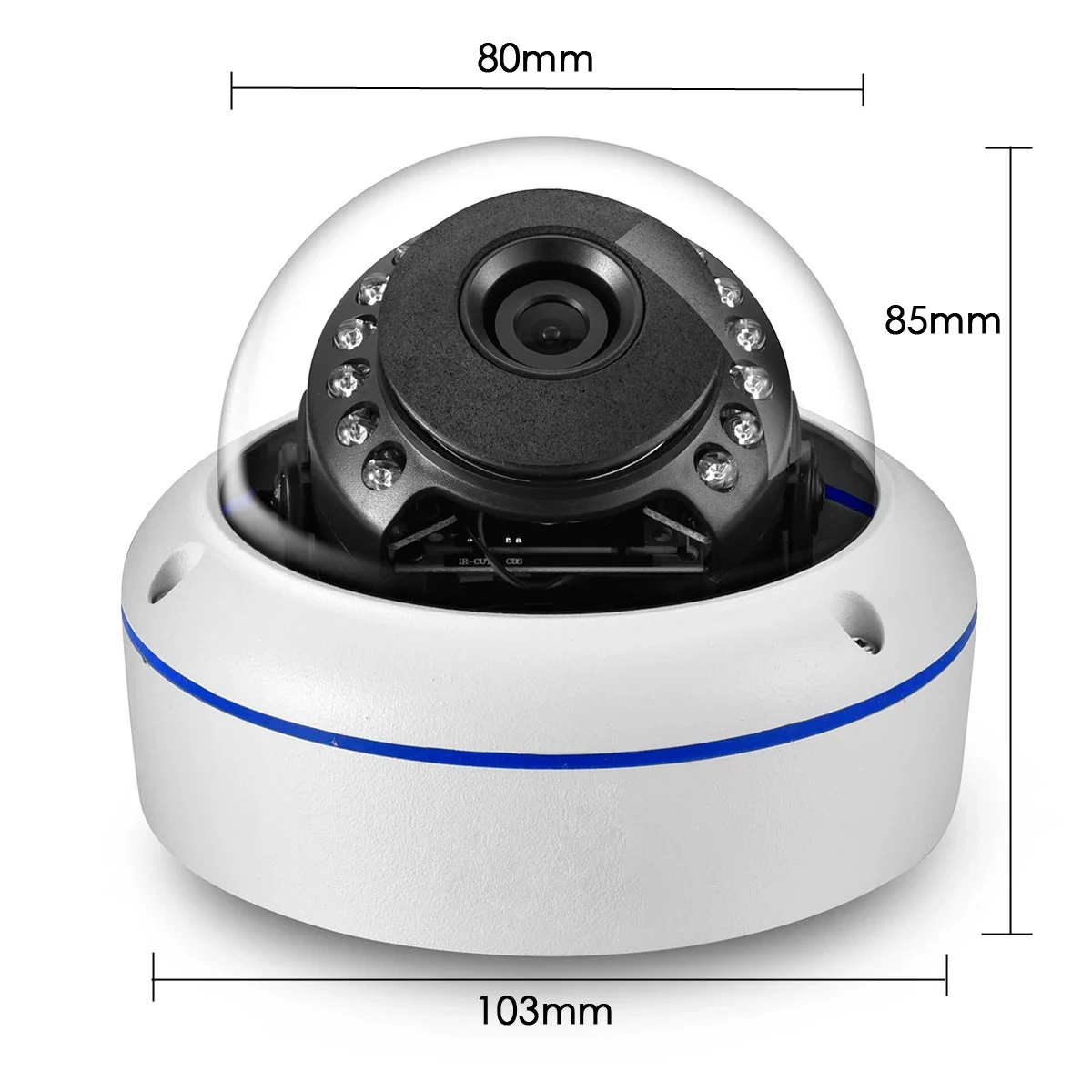

Dimension	103*80mm
Housing material	Metal

Packaging included:
1xAHD Camera(Power supply not included)

Note:if you buy AHD 5MP camera, make sure your DVR is AHD 5MP DVR.

AHD camera must be connected to AHD DVR, not analog 960H DVR or TV monitor directly.

Warm Note:

If you need AHD 5MP DVR(can support AHD 5MP/4MP/3MP/1080P/960P/720P), please click the picture to buy.

Does not include power supply
